| Brand Name: | Futao |
| Model Number: | 9M-200daN |
| MOQ: | 5 टुकड़े |
| कीमत: | $300 - $1050/ Piece |
| Delivery Time: | 40 कार्यदिवस |
| Payment Terms: | एल/सी, टी/टी |
11M Tubular Pole 450daN 550daN ,Hot Dip Galvanization Steel Utility Pole,Low Silicon
Product Description
The products above are steel utility poles made specifically for 11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
|
Product Name |
11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon |
|---|---|
|
Suitable Uses |
11kv Power Distribution |
|
Shape |
Octagonal. |
|
Material
|
Q355B/ A572 gr50, Minimum yield strength >= 355n/mm2 Q235B/A36, Minimum yield strength >= 235n/mm2 Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52) |
|
Tolerance of Dimensions |
+- 1% |
|
Power |
10 -15KV |
|
Safety Factor |
2.0 |
|
Design Load in Kg |
450daN 500daN at 300mm from top |
|
Engraving |
Name plate through rivet or glue, engraving, embossment as per customers' requirement |
|
Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
|
Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode |
|
Design of Poles |
Against earthquake of 8 grade |
|
Wind Resistance |
120 km/h or 32m/s |
|
Minimum Yield Strength |
355 mpa or 450mpa |
|
Min to Max Ultimate Tensile Strength |
490 mpa - 620 mpa |
|
Standard |
ISO 9001 |
|
Length per Section |
2 Section /1 section |
|
Welding |
Internal and external double welding process produces a seamless surface Welding Standard: AWS (American Welding Society) D 1.1 |
|
Thickness |
3mm, 3.5mm 4mm by design |
Packaging & Shipping

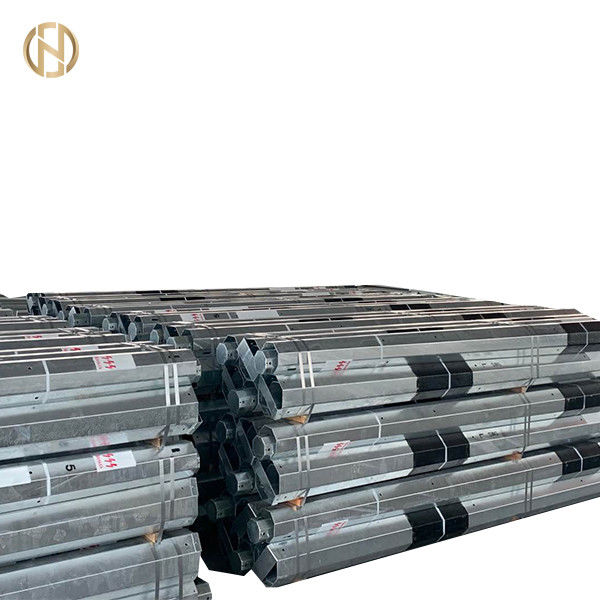

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Welcome to our factory!
