| Brand Name: | Futao |
| Model Number: | FTGG - 0 38 917 |
| MOQ: | 2 टुकड़े |
| कीमत: | $110 - $510 |
| Delivery Time: | 15 - 30 workdays |
| Payment Terms: | एल/सी, टी/टी |

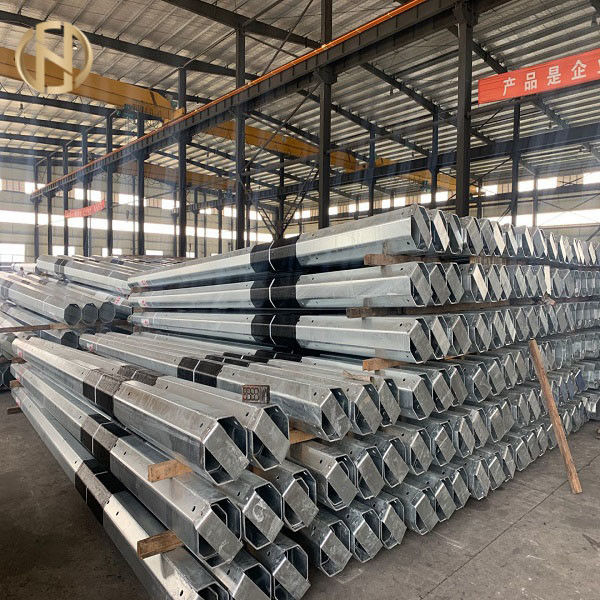

10m Steel Pole Metal Postes Electrical Power Pole 700daN Safety Factor 1.1
Product Description
Our electrical poles are specifically designed fo 10M STEEL POLE METAL POSTES ELECTRICAL POWER POLE ,1050daN Safety factor 1.1
We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specifical Details
| TECHINCAL ASSESSMENT SCHEDULE SPECIEICATION NO.P24 10M GALVANIZED STEEL POLES |
||
| DESCRIPTION | UNIT | TENDERER'S DATA(TO BE INSERTED) |
| 1) Manufacture Standards | --- | |
| 2)Pole Parameters: | ||
| Length | mm | 10000 |
| Thickness of steel | mm | 4 |
| Cross-sectional shape | 8-side | |
| Steel Designation | ASTM number | ASTM A572-GR50 |
| Ultimate Tensile Stress,fu | N/mm2 | 450 |
| Yield Stress,fy | N/mm2 | 345 |
| Max allowable design stress | fd=fy/(1.1) | 1.1 |
| Pole Top diameter | mm | 200 |
| Pole Bottom diameter | mm | 400 |
| Galvanize coating standard | --- | ASTM 123 |
| Galvanize coating thickness | --- | AVE>=75um |
| 3)Pole Top permanently covered | Yes/No | YES |
| 4)Detachable base plate provided | Yes/No | YES |
| 5)Plastic plugs to seal holes provided | Yes/No | YES |
| 6)Polyurethane coating applied as specified | Yes/No | YES |
| 7)Pole fitted with 900mm ground sleeve as specified | Yes/No | YES |
| 8)Pole permanently marked as specified | Yes/No | YES |
| 9)Poles packaged in open top containers | Yes/No | YES |
Load details of 10m 700daN SF 1.1
| %Load | Load(kg) | Act.Load(kg) | Time(min.) | Deflection(mm) | Recovery (mm) |
Remarks | ||
| 50% | 350 | 355 | 1 | 300 | 12 | Passed No signed of failfure or damage |
||
| 70% | 490 | 492 | 1 | 412 | 18 | |||
| 80% | 560 | 565 | 1 | 525 | 23 | |||
| 90% | 630 | 632 | 1 | 550 | 26 | |||
| 100% | 700 | 705 | 1 | 580 | 30 | |||
| 110% | 770 | 772 | 1 | 620 | 35 | |||
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
