| ब्रांड नाम: | FUTAO |
| मॉडल नंबर: | NY-95/15.1 to NY-400/95.1 |
| MOQ: | 10 टुकड़े |
| कीमत: | $1 - $24 |
| डिलीवरी का समय: | 30 कार्यदिवस |
| भुगतान की शर्तें: | एल/सी, टी/टी |

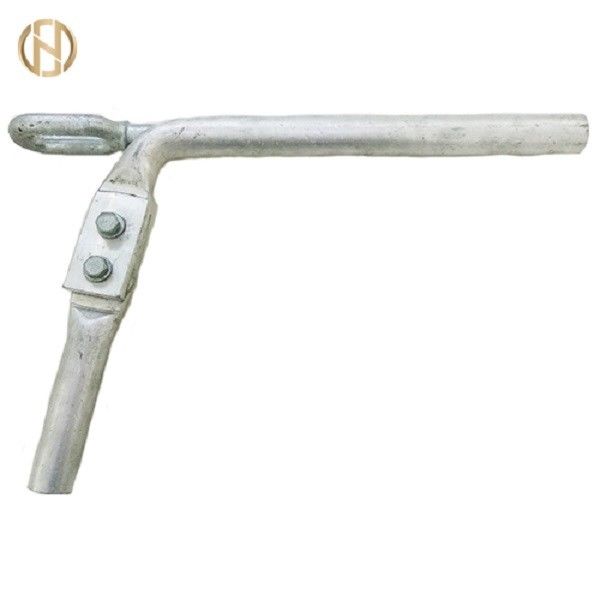

From NY-95/15.1 to NY-400/95.1 Type Hydraulic Compression Dead End Clamp
NY type hydraulic compression dead end clamp is used to fix & connect conductor onto the tension insulator string or the fittings on pole & tower through sustaining tensile force generated by the conductor.
It is made up of high-strength aluminum & steel materials, with clean surface & durable usage period; meanwhile it is easy for installation, free of hysteresis loss, low carbon & energy saving.
NY Type Hydraulic Compression Dead End Clamp
| Type | Applicable Conductor | Dimension(mm) | Holding Strength (kn) | ||||
| D1 | D2 | D3 | C | L2 | |||
| NY-95/15.1 | LGJ-95/15 | 26 | 14 | 16 | 20 | 55 | 33.5 |
| NY-95/20.1 | LGJ-95/20 | 26 | 14 | 16 | 20 | 55 | 35.5 |
| NY-120/20.1 | LGJ-120/20 | 30 | 14 | 16 | 20 | 55 | 39.0 |
| NY-120/50.1 | LGJ-120/50 | 30 | 14 | 16 | 20 | 55 | 45.5 |
| NY-150/20.1 | LGJ-150/20 | 30 | 14 | 16 | 22 | 65 | 44.0 |
| NY-150/25.1 | LGJ-150/25 | 30 | 14 | 16 | 22 | 65 | 51.5 |
| NY-150/35.1 | LGJ-150/35 | 30 | 16 | 16 | 22 | 65 | 62.0 |
| NY-185/25.1 | LGJ-185/25 | 32 | 14 | 16 | 22 | 65 | 56.5 |
| NY-185/30.1 | LGJ-185/30 | 32 | 16 | 16 | 22 | 65 | 61.5 |
| NY-185/45.1 | LGJ-185/45 | 34 | 18 | 18 | 24 | 70 | 76.5 |
| NY-240/30.1 | LGJ-240/30 | 36 | 16 | 18 | 24 | 70 | 72.0 |
| NY-240/40.1 | LGJ-240/40 | 36 | 16 | 18 | 24 | 70 | 79.0 |
| NY-240/55.1 | LGJ-240/55 | 36 | 20 | 20 | 26 | 78 | 97.0 |
| NY-300/15.1 | LGJ-300/15 | 40 | 14 | 16 | 22 | 65 | 65.0 |
| NY-300/20.1 | LGJ-300/20 | 40 | 14 | 18 | 24 | 70 | 72.0 |
| NY-300/25.1 | LGJ-300/25 | 40 | 14 | 18 | 24 | 70 | 79.5 |
| NY-300/40.1 | LGJ-300/40 | 40 | 16 | 18 | 24 | 70 | 88.0 |
| NY-300/50.1 | LGJ-300/50 | 40 | 18 | 18 | 24 | 70 | 98.0 |
| NY-300/70.1 | LGJ-300/70 | 42 | 22 | 20 | 26 | 78 | 122.0 |
| NY-400/20.1 | LGJ-400/20 | 45 | 14 | 18 | 24 | 70 | 84.5 |
| NY-400/25.1 | LGJ-400/25 | 45 | 14 | 18 | 24 | 70 | 91.0 |
| NY-400/35.1 | LGJ-400/35 | 45 | 16 | 20 | 26 | 78 | 99.0 |
| NY-400/50.1 | LGJ-400/50 | 45 | 20 | 20 | 26 | 78 | 117.0 |
| NY-400/65.1 | LGJ-400/65 | 48 | 22 | 22 | 26 | 78 | 128.5 |
| NY-400/95.1 | LGJ-400/95 | 48 | 26 | 24 | 30 | 80 | 163.0 |
