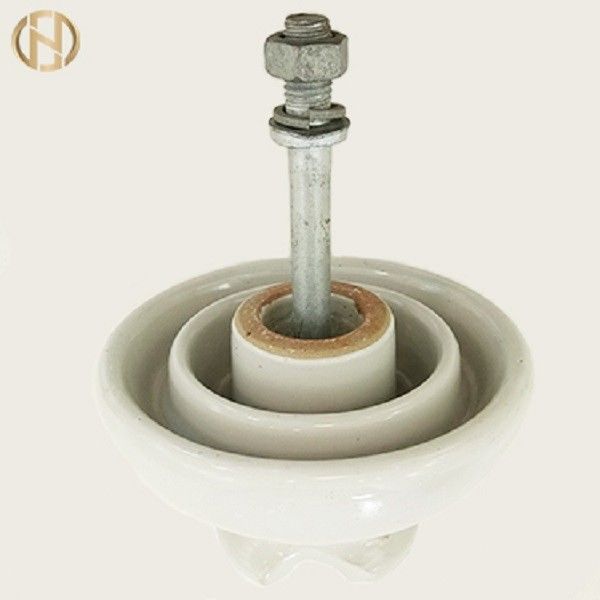

P-20 P-20-Y 11kv 11kn pin insulator pole accessories
MAIN DIMENSIONS AND STANDARD PARTICULARS
| fig | 1 | 2 | 3 | 4 | 5 | 6 | 7 | ||
| Class BS | P-11-Y | P-20-Y | P-33-Y | PW-11-Y | PW-22-Y | PW-33-Y | PQ-36-Y | ||
| Main Dimensions(mm) | H | 137 | 165 | 244 | 185 | 255 | 320 | - | |
| h | 48 | 52.63 | 52.63 | 52.63 | 52.63 | 52.63 | 52.63 | ||
| D | 152 | 230 | 279 | 170 | 205 | 240 | - | ||
| d | 18.29 | 27.78 | 27.78 | 76 | 76 | 76 | - | ||
| d1 | 13 | 19 | 19 | 27.78 | 27.78 | 27.78 | - | ||
| R1 | 12.7 | 14.3 | 13 | 16 | 16 | 16 | - | ||
| R2 | - | - | - | 16 | 16 | 16 | - | ||
| Rated Voltage(kv) | 15 | 22 | 33 | 15 | 22 | 33 | 33 | ||
| Creepage distance(mm) | 298 | 432 | 630 | 432 | 673 | 851 | 900 | ||
| Low-Frequency Punctur Voltage Average(kv) | 135 | 145 | 185 | 150 | 200 | 210 | 170 | ||
| Minimum Flashover Voltage | Power-Frequency(kv) | Dry Withstand | 80 | 100 | 135 | 100 | 125 | 140 | 130 |
| Wet Withstand | 55 | 60 | 85 | 65 | 95 | 110 | 95 | ||
| 50% Positive Impulse(kv) | 130 | 160 | 185 | 150 | 190 | 210 | 190 | ||
| Withstand Voltage | One minute power-frequency(kv) | Dry | 70 | 90 | 110 | 90 | 110 | 125 | 115 |
| Wet | 50 | 55 | 75 | 60 | 90 | 100 | 85 | ||
| Impulse(kv) | 110 | 150 | - | 140 | 180 | 200 | 190 | ||
| Radio-Influence Voltage Data | Test Voltage to Ground(KV) | 15 | 22 | 30 | 22 | 30 | 44 | 44 | |
| Maximun RIV at 1000KHZ(kv) | 8000 | 12000 | 16000 | 12000 | 16000 | 25000 | 25000 | ||
| Bending Failing Load(kn) | 11 | 11 | 13 | 11 | 11 | 11 | 11 | ||
| Weight(kg) | 2 | 4.5 | 11.5 | 5 | 10 | 13 | 8.4 |
||
