Created with Pixso. Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator

Brand Name: FUTAO
Model Number: WS-0770 to WS-42120
MOQ: 1 टुकड़े
कीमत: $1 - $20
Delivery Time: 30 कार्यदिवस
Payment Terms: एल/सी, टी/टी
Detail Information
उत्पत्ति के प्लेस:
जियांगसु चाइना
प्रमाणन:
ISO 9001
Type:
WS-0770 to WS-42120
सामग्री:
गर्म डुबकी जस्ती स्टील
संचालन:
सुविधाजनक
रंग:
चाँदी
प्रयोग:
ओवरहेड लाइन सहायक उपकरण
Size:
WS-0770 to WS-42120
पैकेजिंग विवरण:
बॉक्स द्वारा पैकेज
आपूर्ति की क्षमता:
3000 पीसी एक महीने
प्रमुखता देना:

power pole hardware

,

electric power fittings

Product Description

WS-0770 to WS-42120 Type Socket Clevis Eye Ploe accessories





WS type socket clevis eye is used for connection with the steel foot subjected to the bottom of ball & socket-shaped insulator (ball head). According to different usage conditions & structure, socket clevis eyes are composed of single series type & double-series type.

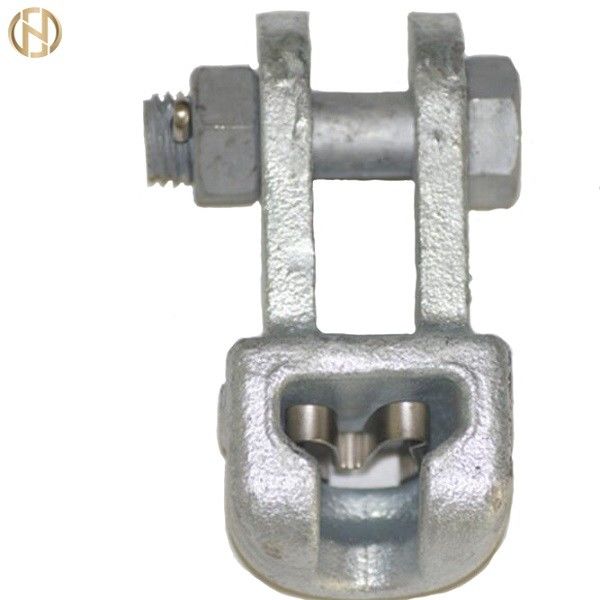

WS Type Socket Clevis Eye

Hot Dip Galvanized Steel Socket Clevis Eye Convenient For Insulator 0

National Grid Type No. 85 Standard Type Size of Coupling Dimension (mm) Nominal Failure Load (kn)
C C1 C2 M H
WS-0770 WS-7 16 18 19.2 34.5 16 70 70
WS-1085 WS-10 16 20 19.2 34.5 18 85 100
WS-1290   16 20 19.2 34.5 22 90 120
  WS-12 16 24 19.2 34.5 22 85 120
WS-1695 WS-16 20 22 23 42.5 24 95 160
  WS-20 24 30 27.5 51 27 100 200
WS-21100   20 24 23 42.5 24 100 210
WS-25100   24 28 27.5 51 27 100 250
  WS-30 24 36 27.5 51 36 110 300
WS-32110   24 32 27.5 51 30 110 320
WS-42120   28 36 32 59 36 120 420
