Created with Pixso. High Durability Pole Accessories Adjusting Plate For Connection Link Plate

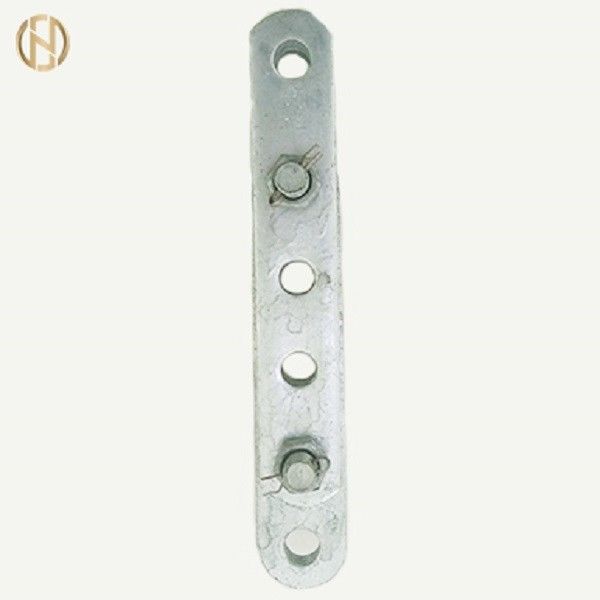

High Durability Pole Accessories Adjusting Plate For Connection Link Plate

Brand Name: FUTAO
Model Number: PT-07240-375 to PT-32420-660
MOQ: 10 टुकड़े
कीमत: $1 - $25
Delivery Time: 30 कार्यदिवस
Payment Terms: एल/सी, टी/टी
Detail Information
उत्पत्ति के प्लेस:
जियांगसु चाइना
प्रमाणन:
ISO 9001
Type:
PT-07240-375 to PT-32420-660
सामग्री:
गर्म डुबकी जस्ती स्टील
संचालन:
सुविधाजनक
रंग:
चाँदी
प्रयोग:
ओवरहेड लाइन सहायक उपकरण
Size:
PT-07240-375 to PT-32420-660
पैकेजिंग विवरण:
बॉक्स द्वारा पैकेज
आपूर्ति की क्षमता:
3000 पीसी एक महीने
प्रमुखता देना:

electric power fittings

,

transmission line hardware

Product Description

PT Type Adjusting Plate Used for Connection Link plate pole accessories

PT type adjusting plate is exclusively used for twin-connected rotation angle insulator string & tension insulator string. On usage, the adjustment of length to adjusting plate depends upon the rotation angle of angle tower to calculate the distance length between the two suspending points subjected to insulator string.


PT Type Adjusting Plate Used for Connection





National Grid Type No. 85 Standard Type Dimension (mm) Nominal Failure Load (kn)
C B M Φ L L1 L2
PT-07240-375 PT-7 20 16 16 18 45 45 60 70
PT-10265-415 PT-10 20 16 18 20 50 50 65 100
PT-12330-415 PT-12 20 16 22 24 75 60 75 120
PT-16370-580 PT-16 22 18 24 26 80 70 80 160
  PT-21 30 26 27 30 70 70 90 200
PT-21370-580   24 20 24 26 80 70 80 210
PT-25420-660   28 24 27 30 90 80 90 250
  PT-30 38 32 36 39 80 80 100 300
PT-32420-660   32 28 30 33 90 80 90 320


High Durability Pole Accessories Adjusting Plate For Connection Link Plate 0High Durability Pole Accessories Adjusting Plate For Connection Link Plate 1High Durability Pole Accessories Adjusting Plate For Connection Link Plate 2
